The influence of gluteal muscle strength deficits on dynamic knee valgus: a scoping review

Abstract

Anterior cruciate ligament (ACL) injuries are caused by both contact and non-contact injuries. However, it can be claimed that non-contact ones account approximately for 70% of all cases. Thus, several authors have emphasized the role of reduction of muscle strength as a modifiable risk factor referred to non-contact ACL injury, with the latter being targeted by specific training interventions.

The present paper wants to review the available literature specifically on the relationship between dynamic knee valgus, gluteal muscles (GM) strength, apart from the potential correlation regarding ACL injury.

After a research based on MEDLINE via PubMed, Google scholar, and Web of Science, a total of 29 articles were collected and thus included.

Additionally, this review highlights the crucial role of gluteal muscles in maintaining a correct knee position in the coronal plane during different exercises, namely walking, running, jumping and landing.

Background

Recently, the incidence of anterior cruciate ligament (ACL) injuries has gradually increased [1]. According to a 2021 review article, the incidence rate of ACL injuries is estimated at 36.9 per 100,000 individuals in the general population [2]. Additionally, ACL injuries are caused by both contact and non-contact injuries, but the majority of them (approximately 70%) actually belong to non-contact ones [3]. Here, injuries are sustained without extrinsic contact to the knee, and result from the athlete’s inherent movement patterns [4].

For this, numerous studies have evaluated the etiology of ACL injuries. Intrinsic, non-modifiable factors can be distinguished to extrinsic and modifiable factors [5]. Following the idea of noncontact ACL injuries being theoretically preventable, identification of modifiable risk factors is essential for successful ACL injury prevention programs.

Besides, several authors have emphasized the reduction of muscle strength as a modifiable risk factor for non-contact ACL injury, the latter being targeted by specific training interventions [6,7,8,9,10]. In the recent months and years, thus, some studies focused on the contribution of the gluteal muscles (GM) in preventing knee sprains during common tasks especially during landing after a jump, or side-cutting movement [4, 5, 11, 12]. Indeed, excessive hip adduction and knee valgus position is proposed as a common risk factor for a variety of acute and overuse lower extremity injuries, including the ACL [13]. Eventually, medial knee joint movement during hip adduction might be an explanation for this to happen, causing dynamic valgus and significant knee abduction moments. Furthermore, it has been noted that people who leaned predominantly on the hip muscles for absorbing impact forces during landing showed limited knee valgus angles, abduction moments, and energy absorption at the knee [14]. Several studies have reported weakness issues concerning hip extension, external rotation and abduction in those participants showing valgus during dynamic tasks or going on to suffer knee injuries [7, 14,15,16].

Hip abduction and external rotation are predominantly positively influenced through both the gluteus medius (GMe) and gluteus maximus muscle (GMa) [8, 17].

In general, GMe and GMa muscles are the key muscles contributing pelvic stability and lower extremity function. They are frequently implicated in disorders of the knee, the pelvis, and the hip [18].

For our purpose, the present scoping review will focus on the gluteus muscle dysfunction on dynamic knee valgus.

Methods

Objective

The scoping review method was specifically chosen here so as to lay out a complete summary of the current literature and knowledge, with the explicit hope of spurring subsequent studies and articles in this field [19]. Moreover, the review was conducted according to the recommendations by Peters et al. [20] and based on the Preferred Reporting Items for Systematic reviews and Meta-Analyses extension for Scoping Reviews (PRISMA-ScR) [4]. The PRISMA checklist can be found in the supplements.

This scoping review aims at overviewing the available literature on the relationship between dynamic knee valgus, GM-strength and the potential correlation regarding ACL injury. It is hypothesized that evidence supports the idea of solid GM strength being highly associated with few dynamic knee valgus (DKV). Subsequently, relations between GM strength and ACL injury will be reported.

Concept and context

Our main focus of the scoping review was to extract information about the association between GM strength and DKV. Therefore, the phenomena of interest in GM are expressions of muscle strength, namely isokinetic or isometric abduction, Electromyography (EMG) GM voluntary contraction, or initial activation during landing tasks. In terms of knee position, the maximum valgus - or so-called abduction of the knee - will be included, in this case measured with a sensor camera. Both issues must be addressed in the same study so as to enable comparisons.

Inclusion criteria

All studies reporting the association of performance-based assessed knee valgus and gluteal muscles, were included. In addition, studies which have previously examined healthy subjects and participants with knee injuries were also included. For information completeness, studies were eligible for inclusion provided they have been published in English, Italian or German languages.

Search strategy

The search strategy aims at presenting a comprehensive overview of the existing research. Therefore, published data from all available study designs was searched with a title and with abstract search strategy, where the latter was deemed to be possible. The databases MEDLINE via PubMed, Google scholar, and Web of Science were employed for the research. After a preliminary search of the literature the search terms were finally defined for the analysis of the entire literature. Last, the search was performed during the month of December 2021.

Results

Our search strategy identified 326 results and 192 papers in PubMed: Following a duplication removal, another 134 result from the other databases were added. Moreover, after a title screening procedure, 280 articles were excluded from the pool. The remaining 46 articles were further examined using the inclusion/exclusion criteria with the exclusion of 17 sources (Fig. 1). At last, twenty-nine papers were finally included for our purposes.

Fig. 1

Flow diagram of the study selection

The study characteristics, level of evidence, outcomes, setting, methods, and results of the included studies were summarized in Table 1.

Table 1 The study characteristics, level of evidence, outcomes, setting, methods, and results of the included studies

Gluteal evaluation during jumping and landing tasks

Seventeen studies evaluated the GM influence on the DKV during a landing and jumping task [6, 8,9,10, 17, 21, 22, 24,25,26,27,28,29,30, 32, 38, 39]. Ten were descriptive laboratory studies [6, 10, 17, 21, 22, 26,27,28, 30, 38], while six were comparative studies that compare frontal-plane knee angle and GMe activation between the sexes during a jump-landing test [8, 9, 24, 25, 29, 39]. Additionally, one was a randomized controlled trial (RCT) [32].

The descriptive laboratory studies were conducted with video analysis compared to GM activation using EMG.

Seven studies have underlined the important stabilizing role of GM strength during the jump-landing task, including the prevention DKV deviation [10, 17, 22, 27, 28, 30, 39]: However, only one study found no correlation between knee valgus and gluteal muscle strength [21]. Thus, these studies highlight the importance of GMa and GMe. The comparative studies were conducted to demonstrate how GM strength and activation are sex correlated, as well as how abduction moment can actually influence knee injuries in women and men.

In the RCT, the authors compare GM activity in athletes after ACL reconstruction and uninjured athletes during landing kinematic, discovering that they have similar biomechanical and neuromuscular responses.

Gluteal fatigue during running

Two studies have investigated gluteal muscle fatigue during a running session [12, 40]. First, one study compared runners with iliotibial band syndrome as opposed to healthy runners [40]. The authors concluded that injured runners demonstrated increased knee adduction in comparison to controls after just a 30 minutes run.

The second study [19] besides evaluated the differences in the timing and magnitude of gluteal muscle activity between male and female runners. Female athletes were observed to run with a 40% greater peak gluteus maximus activation level, and a 53% greater mean activation level, when compared to males. Additionally, female runners also showed greater hip adduction and knee abduction angles during initial ground contact.

Gluteal response during walking

Evidence from five studies concerning the GM response during walking sessions was evaluated [27, 33, 35, 41, 42]. Four of them analyzed gluteus activity through (EMG) and motion analysis [27, 32, 33, 35].

The importance of the GMe and GMa for maintaining proper knee alignment in the frontal plane was assessed in three different studies [27, 32, 35]; nevertheless, only one highlighted no difference between gluteal fatigue and knee malalignment [33].

The fifth study, assessing differences in GM activity during gait using ultrasound imaging [41], highlighted that gluteal activity differences lead to medial knee displacement during gait, concluding potential contribution to inadequate hip stabilization during this daily repetitive task.

Studies that analyze squat tasks

Five studies have here assessed the GMa and GMe strength during the squat task [28, 30, 31, 36, 37].

Of these, three evaluated relationships between hip muscle strength, recruitment, frontal plane knee kinematics, and knee valgus during a squat task [28, 30, 37]. GMa recruitment might modulate frontal plane knee kinematics during single-leg squats.

Moreover, one study examined differences between sexes in knee kinematic and GM activation during a single-leg squat in individuals with patellofemoral pain syndrome (PFPS) and control participants, pointing out that both males and females with PFPS have a reduction in eccentric strength of the hip abductors and external rotators, resulting in a higher DKV [31].

The previous study measured the muscular activation of the GMa and GMe during the squat task, showing the highest activation of these muscles during single-leg squat exercise [36].

The influence of gluteal muscles strengths on lower limb biomechanics is summarized in Fig. 2.

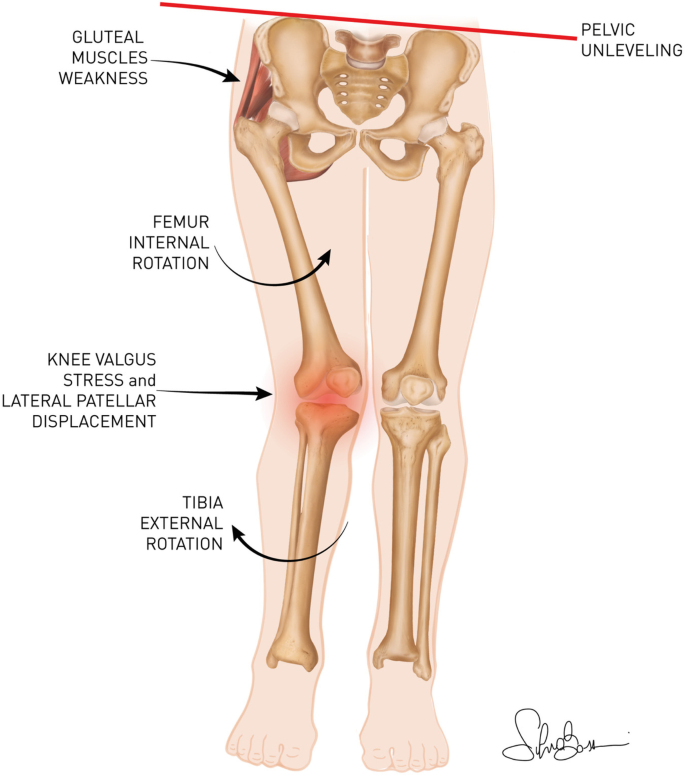

Fig. 2

Gluteal Muscles weakness leads to adduction and internal rotation of the femur, valgus at the knee, and tibia external rotation

Discussion

Our research crucially highlights the role of the gluteal muscles in maintaining a correct knee position in the coronal plane during different exercises, namely walking, running, jumping and landing.

Besides, numerous studies have shown that greater strength of the GMe and GMa may prevent DKV and thus non-contact ACL injuries.

In addition, several authors demonstrated how hip abduction moments influence DKV during jump landing task [5, 9,10,11,12, 15, 16, 34].

In particular, it has been proven that increased knee abduction moment is predicted by reduced GMe force, causing increased lateral ground reaction forces during a jump in both young males and females [16, 21, 27, 39, 42].

The analysis of forty recreationally active females has shown that the GMa works partially as a hip abductor and plays a pivotal role in controlling hip adduction and knee valgus motion during a landing task [22]. Women tend to land in a more knee valgus position than men [29]. However, in contrast to the GMa, the GMe activation did not differ between the sexes, providing thus a possible explanation of anterior cruciate ligament injuries in terms of sex disparity. Several laboratory studies have proven neuromuscular deficits and muscular fatigue, causing knee kinematic alterations and the increased risk for ACL injury in female athletes [6, 9]. Here, fatigue enhanced landing deficits in ACL reconstructed knee in athletes during a landing task [32]. However, fatigue did not affect knee abduction moments in the uninjured leg and control group.

On top of this, we identified six studies that explored the correlation between coronal biomechanics knee joint displacement and GMe activity during walking or running [27, 33, 35, 40, 41, 43].

The majority of these included researches demonstrating the crucial influence of the gluteal muscles on maintaining a correct coronal axis of the knee during activities, such as walking or running [27, 40, 43].

In particular, an Ultrasound Imaging (USI) study on gluteal activity during gait highlighted the close correlation between Medial Knee Displacement (MKD), GM recruitment, and muscle belly change during walking, concluding that the GMe significantly contributes to frontal limb stabilization during this daily repetitive task [41].

An experimental study showed that reduced GM function caused by intramuscular hypertonic saline injections leads to reduced internal hip abductor moments and external knee adduction moments [35].

These findings have proven, once again, the close correlation between gluteal muscle strength and DKV.

In contrast, only one single study could not find an explicit relation between GMe strength and frontal plane knee deviation [33]. Furthermore, the authors found no alterations in hip-adduction moment, hip adduction, or contralateral pelvic drop following a reduction in hip-abductor strength after a transient gluteal nerve block.

In addition, various investigations have analyzed the influence of the GM on valgus knee control during a squatting task [28, 30, 36, 37, 44]. In particular, it has been showed the anticipatory activity of the GM to pelvic drop and knee abduction moment on a total of sixty-one healthy females examined. The latter study has claimed that GMa and GMe recruitment may modulate frontal plane knee kinematics during single-leg squats [30, 36].

Furthermore, a laboratory comparative study has proven that the single-leg squat achieved the highest integrated and peak activation of the GMa and GMe [28].

On top of these papers, Nakagawa et al. [31] have found increased hip internal rotation and decreased GMe activation during a single-leg squat in females with patellofemoral pain syndrome (PFPS) compared to female control participants. This conclusion strengthens the hypothesis that altered knee kinematics hurts the other muscle groups and vice versa.

Although reviewed published literature has proven to be highly insightful, key methodological and research design limitations must be addressed so as to move forward, so as to enable and improve our understanding of effective gluteal muscle influence on knee sprain injuries.

These limitations include small sample sizes, lack of control group, and only partly comparable GM study methods such as video analysis, EMG, strength evaluation with a handheld dynamometer, and Ultrasound evaluation.

Moreover, most of the available studies are descriptive, with a level of evidence IV.

For this reason, especially prospective and cross-sectional studies with injured and control groups are needed to investigate through randomized controlled trial studies the influence of the gluteal muscles on DKV. Here, a broadly accepted core measurement set being respected by involved research groups could help harmonize research on the role of gluteal muscles for injury prevention.

Table 2 is a summary of the clinical implication of the present study.

Table 2 Clinical implications
